[UM2F-0109] Aluminum Universal Roof Mount for Gutter Bracket | Medium Bronze - Match Kynar Material | NO BEND / Straighthttps://docs.kmsheetmetal.com/[um2f-0109]-aluminum-universal-roof-mount-for-gutter-bracket-medium-bronze-match-kynar-material-no-bend-straightThe K&M Sheet Metal Universal Aluminum Roof Mount is designed for gutter hangers, featuring a durable 3/16" bar stock construction. Available in Medium Bronze, it allows for 4.25" vertical pitch adjustments. Perfect for various gutter profiles.UM2F-0109
Available in Mill Finish or several Powder Coated Colors. For Hangers used with Half-Round Copper Gutters, K-Style and Box Gutters

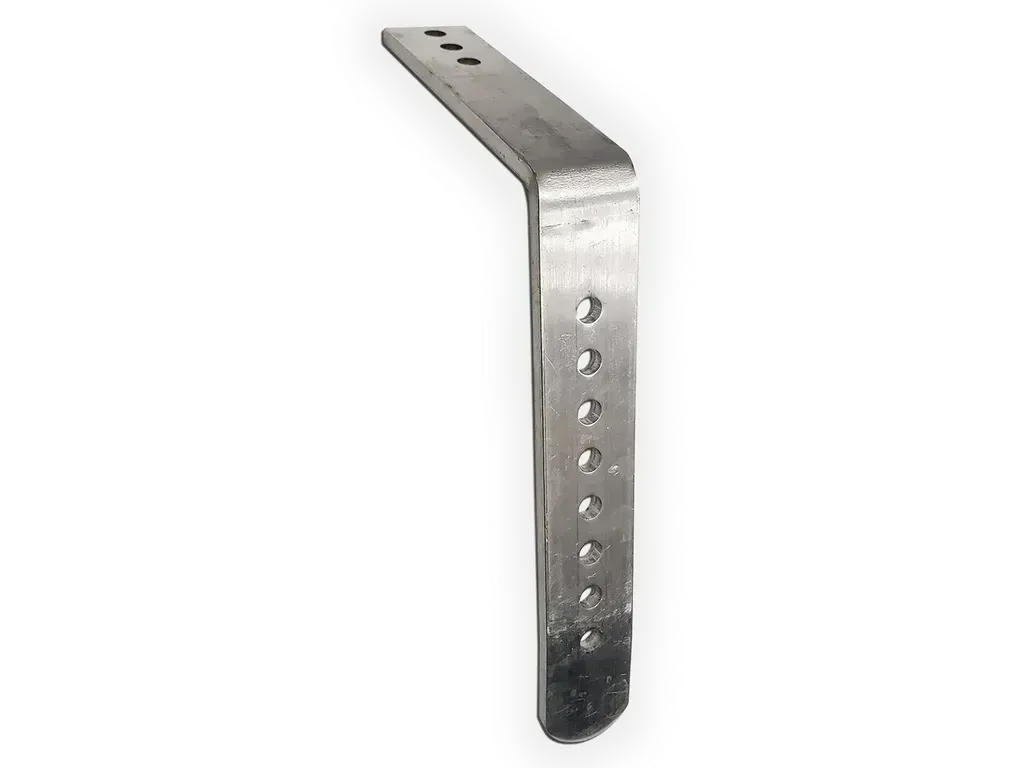

The Universal Roof Mount is designed to be used with our
#15 half round gutter hanger on angled fascias or crown molding. It can also be used with other gutter profiles and gutter hangers as long as those can be attached to one of the 1/4" holes provided in our roof mount via a bolt.
Just make sure it'll work for your application before ordering.
The roof mount is formed from heavy duty 3/16" bar stock material.
The universal roof mount allows for 4.25" of total vertical pitch adjustments in 1/8" increments. It comes with a 1/4" Stainless Steel bolt and locking nut. When a hidden hanger is used (as the crossbar hanger in the examples shown), a hole will need to be drilled in the back of the gutter
to attach the hanger to the roof mount with the provided bolt.
Measuring the pitch
The pitch or the angle of a roof is calculated by how many inches it rises vertically for every 12 inches it extends horizontally.
For example, a roof that rises 6 inches for every 12 inches of horizontal run is called a 6 pitch or a 6-12 pitch.
If drawn on a piece of paper, this triangle would have a 26.57° angle off the horizontal line (the wall line). A different example is a 12-12 pitch, where the rise is 12" over a 12" span,
creating a 45° angle. A flat roof would have a 0 pitch.
If you don't know the pitch
Its a better idea to order slightly over bent (higher pitch) than
under bent. That is because although the material is not soft, it is much easier to unbend the material then to try to bend it more
(unless you have a brake or hanger-bender / bar bender).
Specifications
3/16" Material
Heavy Duty
Available for any size Gutter
Available in Copper and Aluminum
Powder Coating Disclosure
Our colored roof mount bars are powder coated, which provides a very durable, long lasting finish. Because they are manufactured from thick bar stock,
there is significant paint stretching in post powder coating bending, which will lead to some paint cracking / chipping. To avoid any issues, we recommend that the roof bars be purchased pre bent to the correct roof pitch, and if not, that a can of
touch up spray paint be added to your order.
The most popular gutter hanger colors to match 0.027" aluminum material are Dark Bronze and Low Gloss White.
The most popular gutter hanger colors to match Kynar® metal colors are Bone White and Dark Bronze
Powder Coated to Match 0.027" Aluminum Material Colors
Black
Dark bronze
Musket Brown
Royal brown
Almond
Linen
Low Gloss (30°) White
High Gloss (80°) White
Powder Coated to Match Kynar® Pac Clad Standard Aluminum & Galvalume Steel Material Colors
Black Aluminum
Matte Black Steel
Dark Bronze
Medium Bronze
Almond
Bone White
Copper Penny
Charcoal
Common Gutter Hanger Materials
Copper
Galvanized Steel
Lead Coated Copper
Mill Finish Aluminum
Stainless Steel
More Information
Copper Bar Stock is commonly stocked in 3/16" x 1" x 12′ for custom hangers.
Lead Coated Copper Hangers can be requested by custom quote. A minimum of 50 hangers is required.
Mill Finish Aluminum Bar Stock is commonly stocked in 3/16" x 1" x 16′ for custom hangers.
Stainless Steel Bar Stock is commonly stocked in 1/8" x 1" x 16′ for custom hangers in 304 alloy 2B finish.
Aluminum is the most popular metal for aluminum / steel gutter hangers.
Looking for a custom color not listed?
Please EMAIL your request with all information including the metal manufacturer for a quote.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
